Mastering the Art of Crafting Guitar Pedalboards: A comprehensive guide

Updated: Sep 7, 2023

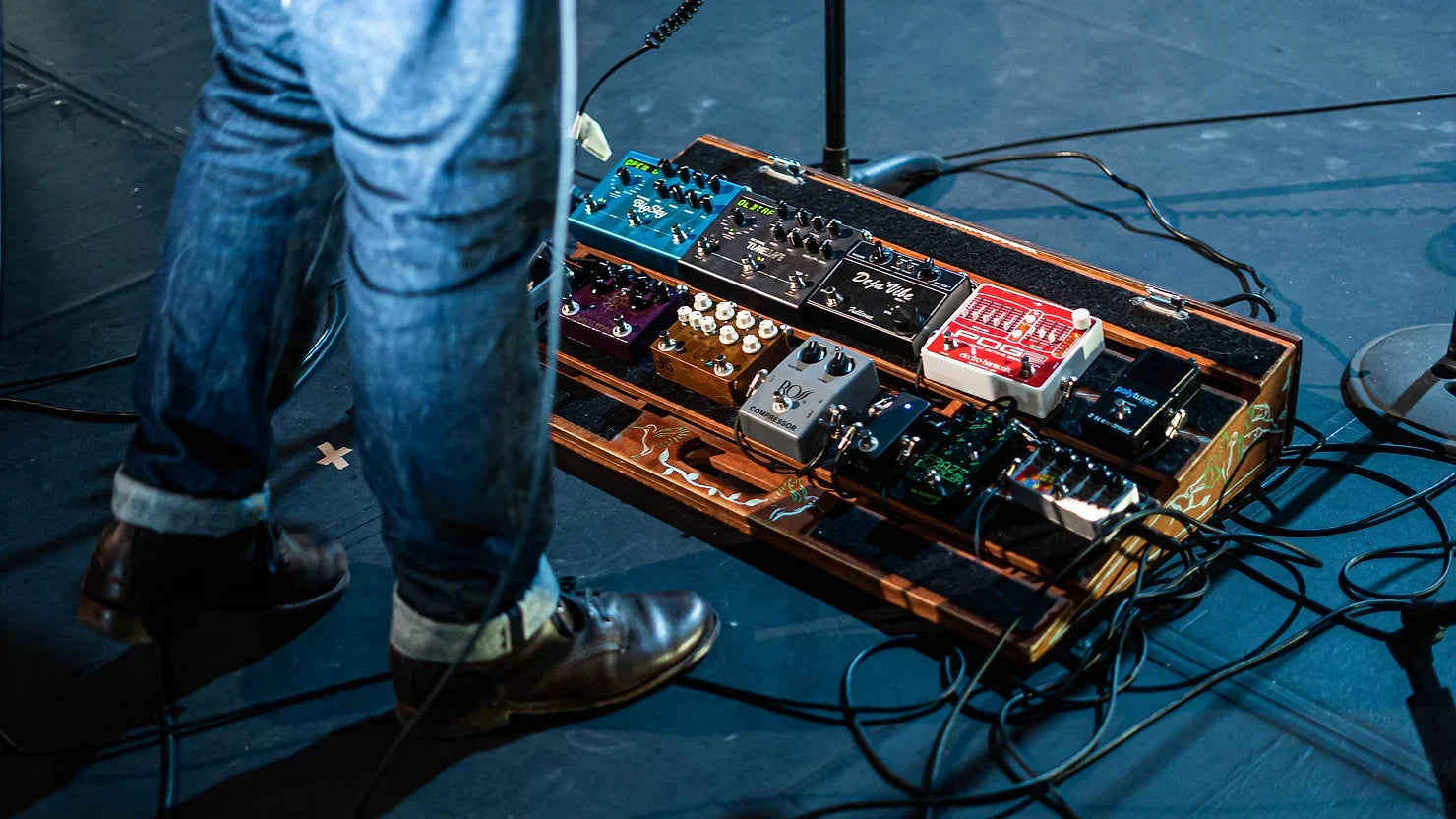

guitar pedalboard with multiple guitar effect pedals

Let’s be honest, if you are a guitar player, you have almost surely had a dream about a massive guitar pedalboard, with loads of pedals, each blaring blinking dreamy lights which essentially make you feel like you are in a spaceship. But have you ever wondered what goes into building a Guitar pedalboard? What factors play an important role in defining your sound? And why have guitar pedalboards become an essential tool for musicians worldwide?


Read on, because you are up for an interesting, fun ride.


The Basics of Guitar Pedalboards


1. Definition and Functionality of a Guitar Pedalboard


A guitar pedalboard is a flat or an included surface, typically made of metal, on which effects pedals are mounted. It is a hub that houses and connects all the necessary components, allowing the guitarist to control their effects and manipulate their sound effortlessly.


2. How is a Guitar Pedalboard manufactured?


Before we dive into the nitty-gritty, let's first quickly understand how a guitar pedalboard is manufactured.


Design and Planning: This stage involves determining the size, shape, layout, and features of the pedalboard. Design software like CAD (Computer-Aided Design) and the likes, may be used to create detailed plans and templates.


Material Selection: Materials like aluminum, steel, wood, or composite materials are commonly used. The choice of material affects the pedalboard's durability, weight, and aesthetics. Aluminum is a popular choice due to its lightweight yet sturdy nature.


Cutting and Holes: the next process is to use CNC machines to cut materials into the CAD design shapes. Holes and cutouts are then made to accommodate pedals, cables, power supplies and other accessories.


Finishing: Powder coating, anodizing (for aluminum), or applying paint or varnish (for wood). Finishing also includes adding logos, labels, or other graphical elements.


Cable management & Mounting systems: Manufacturers also choose to give cable management solutions, fasteners and mounting systems for your pedals.


Assembly: At this stage feet, handles and accessories are attached to the pedalboards.


Quality Control: Each pedalboard then undergoes quality control checks to ensure that it meets design specifications and functional requirements. This can include checking for any defects, alignment issues, or finishing imperfections.


Packaging and Distribution: The finished pedalboards are packaged and prepared for distribution. This involves protecting the pedalboards during shipping to prevent damage.


Customization: Some brands offer customization options for pedalboards, allowing customers to make their own pedalboards of different sizes, colors, and features to match their preferences and needs.


3. Why are Guitar Pedalboards important and why are they popular?


Guitar Pedalboards make for an essential companion for any musician. They are not necessarily used by only guitarists. Keyboardists, vocalists, violinist, bass players, and even electronic music producers, have unique use cases for pedalboards. But aside from looking “cool”, pedalboards give the freedom for any musician to shape their unique tones and sounds and create something special.


In modern history, genres like rock, pop, hip-hop, metal, progressive rock and many more have each shaped artists using pedalboards in their own unique way. With this technology at hand and a massive interest in creating unique tones, guitar pedalboards have carved their unique, strong and irreplaceable position in any musician's gear arsenal.


4. Types of Guitar Pedalboards


Fixed Pedalboards: These are pre-built, ready-to-use boards that come in various sizes and designs. They often feature a rigid structure and offer a convenient solution for those looking to get started quickly.

Modular Pedalboards: Modular pedalboards offer a flexible and customizable approach. They consist of individual pedal modules that can be rearranged or replaced, giving musicians the freedom to create a tailored setup as per their preferences. Perfect for musicians looking to slowly build their effect pedals arsenal.

DIY Pedalboards: DIY pedalboards provide an opportunity for musicians to showcase their creativity and save money. They involve constructing a pedalboard from scratch, allowing for customization, and offering a unique sense of pride and accomplishment. These can be made of wood, or using pre-built metal sheets and welding them together. Customization also is an integral part of such boards.


Essential Components of a Guitar Pedalboards


1. Effects Pedals


Effect pedals are small boxes of electronic wonder. These encasings have chipboards inside which converts electrical signals coming from the guitar into various tones and sounds. Some commonly used types of effects pedals include:


Compressor: Compressor pedals help even out the dynamic range of a guitar signal, enhancing sustain and providing a smooth, consistent tone.


Overdrive and Distortion Pedals: Overdrive and distortion pedals add grit, saturation, and varying degrees of gain to a guitar's signal, allowing for an array of tonal options ranging from subtle crunch to full-blown distortion.


Modulation Pedals: Modulation pedals, such as chorus, phaser, and flanger, alter the guitar's signal by introducing time-based or frequency-based modulation effects, adding depth, movement, and texture to the sound.


Delay and Echo Pedals: Delay and echo pedals create repeating echoes of the guitar's signal, adding spaciousness, depth, and a sense of ambience to the sound.


Reverb Pedals: Reverb pedals simulate the natural echo and reverberation of different environments, allowing for the creation of lush and atmospheric soundscapes.


Other Common Pedal Types: Other pedal types, such as wah, tremolo, and octave, offer additional sonic possibilities and creative effects to further shape the guitar's sound.


2. Power Supply


A reliable power supply is crucial to powering up the effect pedals you have on your pedalboard. You can use DC batteries if your pedals are compatible, but there are various pedals out there which require, an isolated AC current of a fixed mA which can be only generated through a good-quality power supply.


Determining Power Requirements: Each effects pedal requires a specific amount of power. It is essential to calculate the cumulative power consumption of all the pedals on the board and select a power supply that can meet those requirements.


Choosing the Right Power Supply: Various power supply options exist, including isolated and non-isolated types. Isolated power supplies are preferable as they minimize noise and eliminate ground loop issues, ensuring cleaner and more reliable power distribution.

3. Patch Cables and Signal Flow


How does one effect pedal connect to another? Well, this is where patch cables come into play. Patch cables are short high-quality TS unbalanced cables that connect one effect pedal's output to another pedal’s input so that the signal integrity is maintained.


Understanding Signal Chain Basics: Signal chain refers to the order in which effects pedals are connected. This sequential arrangement determines the interaction between the pedals, impacting the overall sound. Experimentation with signal chain placement can yield unique and desired results.


Importance of High-Quality Patch Cables: High-quality patch cables minimize signal loss, noise, and interference. They ensure optimal signal transfer and preserve the integrity of the guitar's tone, resulting in a cleaner and more articulate sound.


Planning & Building Your Guitar Pedalboard


1. Analyzing Your Needs and Playing Style

To build an effective pedalboard, it is essential to consider your individual needs and playing style. Factors such as preferred genre, desired effects, and personal tone preferences will influence the selection and arrangement of pedals. You don’t need all the pedals in the world to achieve the desired tone.


If you are just starting out and want to build your pedalboard start from these essential pedals.

  • Compressor Pedal - Highly recommended

  • Overdrive/Distortion Pedal - Highly recommended

  • Modulation Pedals (Chorus, tremolo etc.) - Not Advisable if starting out

  • Delay Pedal - Highly recommended

  • Reverb Pedal - Highly recommended

  • Octave Pedals - Not advisable if starting out

  • Cab Sim Pedals - Highly recommended for an Amp-less setup


2. Considering Size and Portability

The size and portability of a pedalboard are important factors to consider. Determine whether you need a compact, travel-friendly option if you are touring musicians or a larger board to accommodate a larger collection of pedals because you want to experiment with tones and are mostly at a home studio.

3. Organizing Pedals for Optimal Functionality


Now there are no set rules for the order in which you arrange the pedals, but whatever order you choose it should be in a logical and ergonomic manner. Group pedals that are frequently used together, ensure easy access and efficient control during live performances. An organized layout contributes to a seamless playing experience.


The most commonly used signal chain would look something like this:

signal chain of effect pedals on a guitar pedlboard


4. Budget


Pedals and Pedalboards can become very expensive very fast. Pedals are not cheap and neither are power supplies. It becomes imperative to define a budget and the go shopping. You don’t have to spend bucket loads of cash on a pedal that probably looks good but performs the same as any other. Look for the sweet spot and stick to your budget. And let’s face it, once you have tasted the spirit of buying effect pedals, It would be very hard NOT to upgrade in future years of your playing.


Maintenance and Troubleshooting Tips


1. Cleaning Your Pedalboard and Pedals


Regular cleaning of the pedalboard and pedals is essential for maintaining optimal performance and longevity. Use a soft cloth or brush to remove dust, debris, and grime, ensuring clean connections and smooth operation.


2. Addressing Common Technical Issues


Noise and Grounding Problems: If you encounter noise issues, ensure that your power supply is properly grounded. Routinely check and troubleshoot cables, connectors, and pedals to identify potential grounding problems and address them accordingly.

Power Supply Failures: In the event of power supply failures, check the cables and connectors for any loose connections. Consider having a backup power supply or a backup plan (like high quality durable batteries) to mitigate the impact of a power supply failure during performances.


Future Trends in Guitar Pedalboard Technology


1. The advent of DSPs and Plugin-based Pedalboards

Digital Signal Processors (DSPs) and plugin-based pedalboards are gaining popularity due to their versatility, ease of use and lower price. These technologies offer an extensive range of effects in a single unit, providing limitless tonal possibilities and a simplified setup.


Having said that, they also come with their own set of unique challenges. The biggest one being the need for a high performance computer machine, high quality audio interfaces, a DAW (Digital Audio Workstation) and enough ram to handle latency issues which can become challenging while recording. Additionally this setup becomes vey difficult and open to failures if you are live performer.


2. Why Analog Pedalboards Still Rule


Despite the rise of digital alternatives, analog pedalboards continue to reign supreme among guitarists. The versatility, and unique tonal characteristics and vintage aesthetic appeal make them beloved by musicians seeking a classic and organic sound.


With their solid workflow, zero latency and a plug-n-play nature, analog pedals are here to stay. And who can beat the feel of turning knobs and spending countless hours defining your tone?


Conclusion


In the end, we will leave you with this - crafting a guitar pedalboard is a deeply personal and creative endeavor, which allows you to build and create something of your own. It is a creative let-out through which you can express yourself as a musicians.


So go out there, build your own guitar pedalboard and have fun doing it.


Frequently Asked Questions (FAQs)


Q. Can I use any power supply for my pedalboard?

A. While some power supplies may work with your pedalboard, it is essential to consider the power requirements and compatibility of your specific pedals. A reliable and dedicated power supply which is preferably isolated is recommended to ensure optimal performance and minimize potential issues.

Q. How do I choose the right size for my pedalboard?

A. When choosing the size of your pedalboard, consider the number of pedals you intend to use and the available space for setup and transportation. Measure your pedals and take into account any future expansion to determine an appropriate size that meets your current and future needs. Modular pedalboards are a great solution to answering ever-expanding guitar pedal setup.

Q. Are there any alternatives to Velcro for securing pedals?

A. Yes, several alternatives to Velcro exist, including adhesive-based hook-and-loop fasteners, zip ties, dual lock fasteners, and pedalboard mounting plates. Explore these options to find what works best for your specific pedalboard setup and preferences.


Q. How can I reduce noise and interference in my pedalboard setup?

A. To reduce noise and interference, ensure proper grounding of your power supply, use shielded and high-quality cables, minimize the lengths of unshielded cables, and wisely manage cable routing to prevent crossing power and audio cables. Additionally, consider utilizing noise reduction pedals or isolating power supplies to further mitigate any potential noise issues.

Q. What are some cost-effective pedalboard options for beginners?

A. For beginners on a budget, there are several cost-effective options available, such as DIY pedalboards made from inexpensive materials, pre-owned pedalboards, and smaller-sized pedalboards designed for compact setups. Additionally, exploring entry-level modular pedalboard systems can provide flexibility while being affordable.
